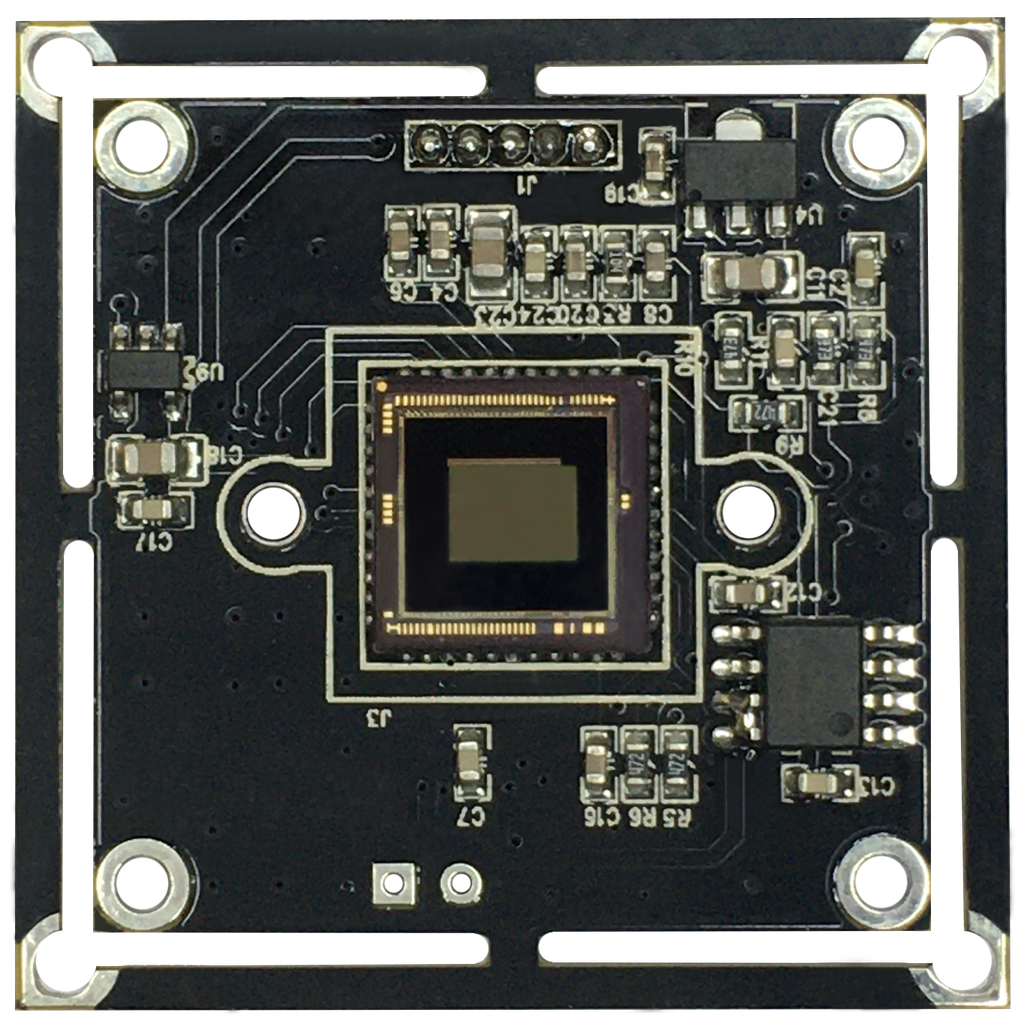

【SCM2-D0201L00】2.0MP Low Noise High Performance 1/3-inch UXGA USB Camera
NT$ 855.00
【SCM2-D0201L00】
Module Features:
| ▹ Sensor | : MI2010 CMOS Image Sensor with DigitalClarity™ CMOS Imaging Technology |
| ▹ Resolution | : 2.0MP (UXGA) |
| ▹ Pixel size | : 4.2 µm x 4.2 μm |
| ▹ Array size | : 1600(H) x 1200(V) |
| ▹ Sensor Active Area | : 4480 µm(H) x 3360 µm(V) |
| ▹ Shutter type | : Electronic Rolling Shutter |
| ▹ Optical Format | : 1/3" Optical format |
| ▹ Output Format | : MJPEG / YUY2 |
| ▹ Max Image Transfer Rate | : 30 fps at SVGA, 15fps at UXGA |
| ▹ Focus Type | : Fixed focus |
| ▹ Holder | : M12 (S-mount) |
| ▹ DFOV | : 60° - 210° (depend on the chosen lens) |
| ▹ S/N Ratio | : 50dB |
| ▹ Dynamic Range | : 60dB |
| ▹ Supported OS | : Windows, Linux, Android and MAC |
| ▹ UVC compliant | : no additional drivers required |
| ▹ Operating Voltage | : DC 5V+/-5% |
| ▹ Operating Temperature Range | : -20°C to 70°C |
| ▹Power Consumption | : about 967mW while streaming 2.0MP @ 15fps |
| ▹ Board Dimension | : 38 mm x 38 mm (32 mm x 32 mm) |
